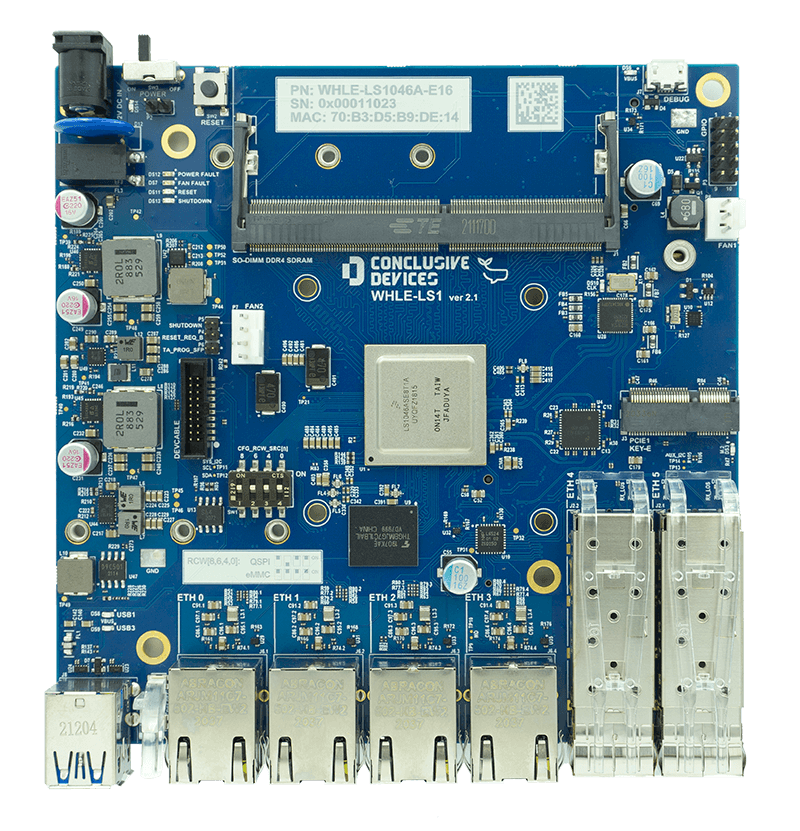

WHLE-LS1
High Performance Single Board Computer

  • NXP Layerscape® LS1 series SoC
  • DDR4 SODIMM with ECC
  • Robust Connectivity: 4x 1 Gbit/s Ethernet, 2x 10 Gbit/s SFP+, 3x PCIe M.2
  • SmartNIC features and over 45,000 CoreMark® performance
Buy now

Features and specifications
of the WHLE-LS1 High Performance Single Board Computer

SoC NXP Layerscape® SoC variants:
  • LS1026A, 2 core Arm® Cortex®-A72 1.8 GHz CPU with DPAA
  • LS1046A, 4 core Arm® Cortex®-A72 1.8 GHz CPU with DPAA
  • LS1048A, 4 core Arm® Cortex®-A53 1.4 GHz CPU with DPAA2
  • LS1088A, 8 core Arm® Cortex®-A53 1.6 GHz CPU with DPAA2
Memory 1x SO-DIMM socket supporting up to 32 GB DDR4 SDRAM with ECC (up to 2100 MT/s)
Ethernet
  • 4x 1 Gbit/s RJ45
  • 2x 10 Gbit/s SFP+
Mass storage
  • 4-64 GB eMMC
  • 16 MB QSPI NOR Flash
  • 8 KB EEPROM
PCIe
  • M.2 Key-M 2280 PCIe 3.0 x2 NVMe
  • M.2 Key-M 2280 PCIe 3.0 x1 NVMe
  • M.2 Key-E 2230 PCIe 3.0 x1 WiFi/BT with USB 2.0, I2C, UART
USB
  • 1x or 2x USB A 3.0
Debug
  • Conclusive Developer Cable connector providing access to:
  • - System UART
  • - JTAG port
  • - System I2C bus
  • 1x USB Micro-B 2.0 console port (System UART)
Software support
  • Linux 6.1 & 6.5
  • U-Boot
  • UEFI-EDK2
  • Yocto
  • Buildroot
  • Ubuntu
  • FreeBSD (on request)
Additional features
  • RTC with CR2032 back-up battery
  • Boot source selector DIP switch
  • 2x bi-color status LED
  • Two channel fan controller with 3 pin and 4 pin fan connectors
  • 6x GPIO (3.3V)
  • External I2C (3.3 V)
Power supply 12 V DC, 2.5 x 5.5 mm barrel connector
Dimensions 130 x 130 mm

WHLE-LS1 Software

For universality, the WHLE-LS1 Single Board Computer supports a variety of software choices.
Additionally, we offer software customization services to minimize development cost and speed up time to market.

Software support
  • Linux system logo Linux 6.1 & 6.5
  • U-boot system logo UEFI-EDK2
  • U-boot system logo U-Boot
  • Yocto system logo Yocto
  • Buildroot system logo Buildroot
  • Ubuntu system logo Ubuntu
  • FreeBSD system logo FreeBSD (on request)

WHLE-LS1 - Send a request

Fill out the details below and one of our representatives will contact you shortly.

Inquiry about custom board
Video about us

WHLE-LS1 - High performance Single Board Computer with extensive connectivity features.

  • Small form factor, perfect for custom routers and firewalls
  • Featuring NXP Layerscape® processors based on Arm® Cortex®-A53 and Cortex®-A72.
  • SoC variants: LS1026A, LS1046A, LS1048A, LS1088A
  • Hardware network traffic processing engine
  • Easy to expand thanks to PCIe M.2 connectors

WHLE-LS1 - Utilize the full power of WHLE-LS1 Layerscape® LS1 series

Processor with up to 8 cores, up to 1.8 GHz per core. Capable of real-time computation. Comes in two variants - the powerful LS1026A and LS1046A with DPAA, or the energy efficient LS1048A and LS1088A with DPAA2.

High performance Single Board Computer is capable delivering over 45,000 CoreMark® with SmartNIC features.

AI
Whale box

Whale WHLE-LS1 is applicable for

  • Embedded systems with advanced I/O needs
  • Power-constrained networking and Packet Analysis
  • Wired and Wireless Routing
  • Virtualized Networks
  • Industrial applications
  • Smart Factory
  • Automotive and Machine Control
  • Edge Compute nodes

WHLE-LS1 Configurations:

Part nr Soc variant eMMC variant
WHLE-LS1026A-E16 LS1026A E16
WHLE-LS1026A-E64 LS1026A E64
WHLE-LS1046A-E16 LS1046A E16
WHLE-LS1046A-E64 LS1046A E64
WHLE-LS1048A-E16 LS1048A E16
WHLE-LS1048A-E64 LS1048A E64
WHLE-LS1088A-E16 LS1088A E16
WHLE-LS1088A-E64 LS1088A E64

WHLE-LS1
High Performance
Single Board Computer

  • NXP Layerscape® processor
  • up to 1.8 GHz
  • up to 8 cores
  • Packet processing engine
  • 1x 64-bit DDR4 up to 2.1GT/s ECC support
  • 4x 1 Gbit/s Ethernet
  • 3x PCIe M.2
  • 2x 10 Gbit/s SFP+
  • up to 64 GB eMMC
  • 2x USB 3.0

WHLE-LS1 Resources

Product Flyer - WHLE-LS1

PDF - 1 MB

Datasheet - WHLE-LS1 2.1

PDF - 13 MB

Block Diagram - WHLE-LS1

PDF - 7 MB

Wiki Page - WHLE-LS1

Wiki

WHLE-LS1 - Buy now

Unlock the power of the WHLE-LS1 High Performance Single Board Computer

Buy now
